Technical Specifications – P4 Outdoor LED Display
• Pixel Pitch: P4
• Pixel Density: 62,500 dots/m²
• LED Type: SMD2525
• Module Size: 320 × 160 × 18.5 mm
• Brightness: ≥4200 cd/m²
• Refresh Rate: ≥3840 Hz
• Frame Frequency: ≥60 fps
• Display Color: ≥16.7 Million Colors
• Operating Environment: Outdoor
• Average Power Consumption: ≤47 W / module
• Maximum Power Consumption: ≤909 W / m²
• Lifespan: >100,000 hours

Ip65 ( dust and water resistant)

1 year warranty

2 year service warranty

Add a description about this item

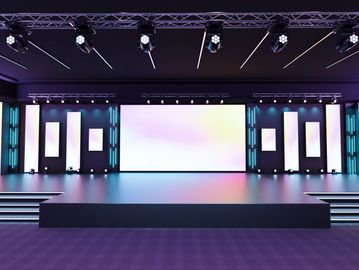

Technical Specification
           Module
*Pixel Pitch 1.860 mm, *PixelDensity 288906Dots/㎡,
*Configuration 1R1G1B *LEDLamp SMD 1515
*Size(Width*Height*Depth)
              320*160*15mm
*Weight 0.47kg±0.01kg
*Resolution 172*86=14792Dots
*Input Voltage (DC) 4.5±0.1V *Maximum Current ≤5 A
*Power Consumption ≤23W   *Driving Method,40A
*Brightness ≥600cd/㎡
*PowerConsumption≤439  W/㎡
*Operation,Environment Indoor
*Grayscale 14-16bits (RGB  each)
*Display Color 4398 Billion
*Refresh rate 3

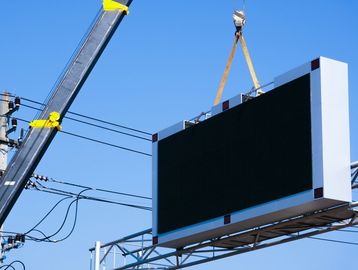

Technical specifications

*Pixel Pitch 2.5mm
*Pixel Density 160000Dots/㎡
*Configuration 1R1G1B *LED Lamp SMD2020
*Size
(Width*Height*Depth) 320*160*15mm
*Weight 0.34kg±0.01kg
*Resolution
128*64=8192Dots
*Input Voltage (DC) 4.5±0.1V
*Maximum Current
≤5.2A
*PowerConsumption
≤23W
*Brightness ≥500cd/㎡
*Max Power
Consumption
≤457 W/㎡
*Operation
Environment
Indoor
*Display Color  4398Billion
*Frame Frequency ≥60 frame/sec
*Refresh Frequency ≥3840 Hz
*Life span>100,000 hoursl

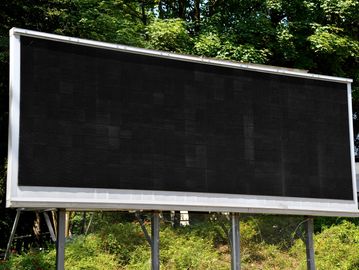

Technical specifications

Pixel Pitch 3.0 mm
*PixelDensity  105625Dots/㎡
*Configuration 1R1G1B *LED Lamp SMD1515
*Size
(Width*Height*Depth)
320*160*17.5mm
*Weight 0.40kg±0.01kg
*Structure Lamp & IC in  same
*PCB Resolution
104*52=5408 Dots
*Input Voltage (DC) 4.5±0.1V
*Maximum Current ≤8.94A
*Power
Consumption
≤40W Driving Method
*Brightness ≥6000cd/㎡ *Brightness
Uniformity
＞0.95
*Max Power
Consumption
≤457 W/㎡
*Operation
Environment
Indoor
* Refresh rate 3840hz

*Life Span 100000 hours
